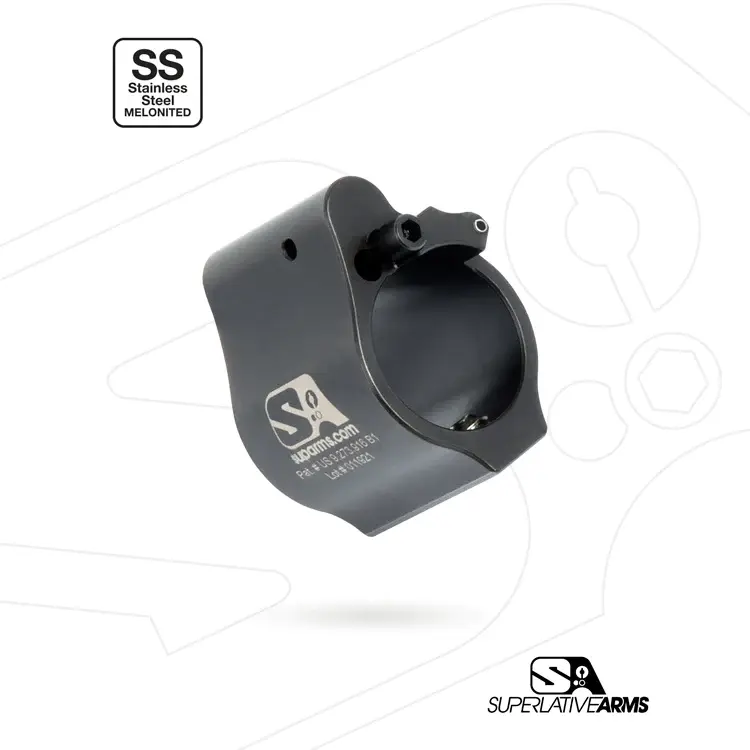

The Superlative Arms Patented “Bleed Off”, direct impingement, gas block for the AR-15/AR-10/LR-308 platform adjusts the gas flow by bleeding the gas out of the front of the block instead of restricting the flow like conventional adjustable blocks. Results:

  • The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler.
  • Reduction of felt recoil.
  • Patented adjustment detent is located outside of the block and therefore no contamination.
  • The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up.  Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out.
  • When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back.

Data:

  • Gas Block Material: 416 SS
  • Finish: Melonite, QPQ
  • Barrel Diameter: 0.750"
  • Weight: 1.68 oz.
  • Length: 1.00"
  • Attachment Type: Solid
  • Gas Adjustment:  (Patented) 30 locked positions, front of block
  • Bleed Off Port:  (Patented) Front of block which vents forward away from operator



 Included:

  • Gas Block - Assembled
  • (2) 10-32 x 1/4" Set Screws
  • (1) Gas Tube Roll Pin
  • (1) 3/32 x 6" L-Shaped Hex Key, Ball-end / Torx T-15 Tool
  • (1) Instructions for installation and setup

.750" Adjustable Gas Block, Bleed Off - Solid, Set Screw - Melonite Finish

SKU: SABO-DI-750SM
$99.99Price
